Workload & Capacity Planner for Jira – User Guide
How to use Workload & Capacity Planner for Jira: the assignee board, drag-to-reassign, the capacity heatmap by person and week, filters, sprints and views.
Workload & Capacity Planner shows who is working on what, and how many hours each person has this week. Drag a card from a busy person to a free one, and see on a heatmap who is overloaded in the coming weeks.
How to read the pictures. Every screenshot comes from a real Jira site. The red boxes with numbers show where to look or click. Number 1 in the picture is step 1 in the text, number 2 is step 2, and so on.
Get started in 2 minutes
- Install Workload & Capacity Planner from the Atlassian Marketplace (a Jira admin; free for up to 10 users).
- Open it: Jira’s Apps menu → Workload & Capacity Planner.
- Choose people or a group in Filters → Assignees, then open the Workload tab: each person’s weeks turn green, amber or red against their capacity. Drag a card to another person to rebalance.
- Save changes keeps the board as your saved view; Filters → Projects or Groups widens it to the whole team.
Overview
Workload & Capacity Planner shows your team’s Jira work in two ways:
- By assignee — one column per person you choose (or every member of the groups you choose), plus Unassigned. Dragging an issue to another person reassigns it in Jira.
- Workload — a heatmap with people in rows and weeks in columns: the estimated hours of each person’s open issues due that week, against their weekly capacity.
It works across all your projects, or the ones you pick. Every change is made as you, with your own Jira permissions; the app runs on Atlassian Forge and stores only your saved filters, views and capacities, in your Atlassian site.
The hours come from Jira’s time tracking fields (original and remaining estimate). The app does not log time and does not track leave.
Install and open the planner
- Install Workload & Capacity Planner from the Atlassian Marketplace (a Jira admin approves the permissions).
- In Jira’s sidebar, open Apps and choose Workload & Capacity Planner.
-

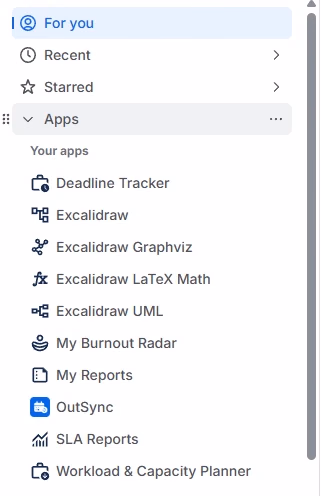

In Jira’s sidebar, open Apps.
-
Choose Workload & Capacity Planner.
-

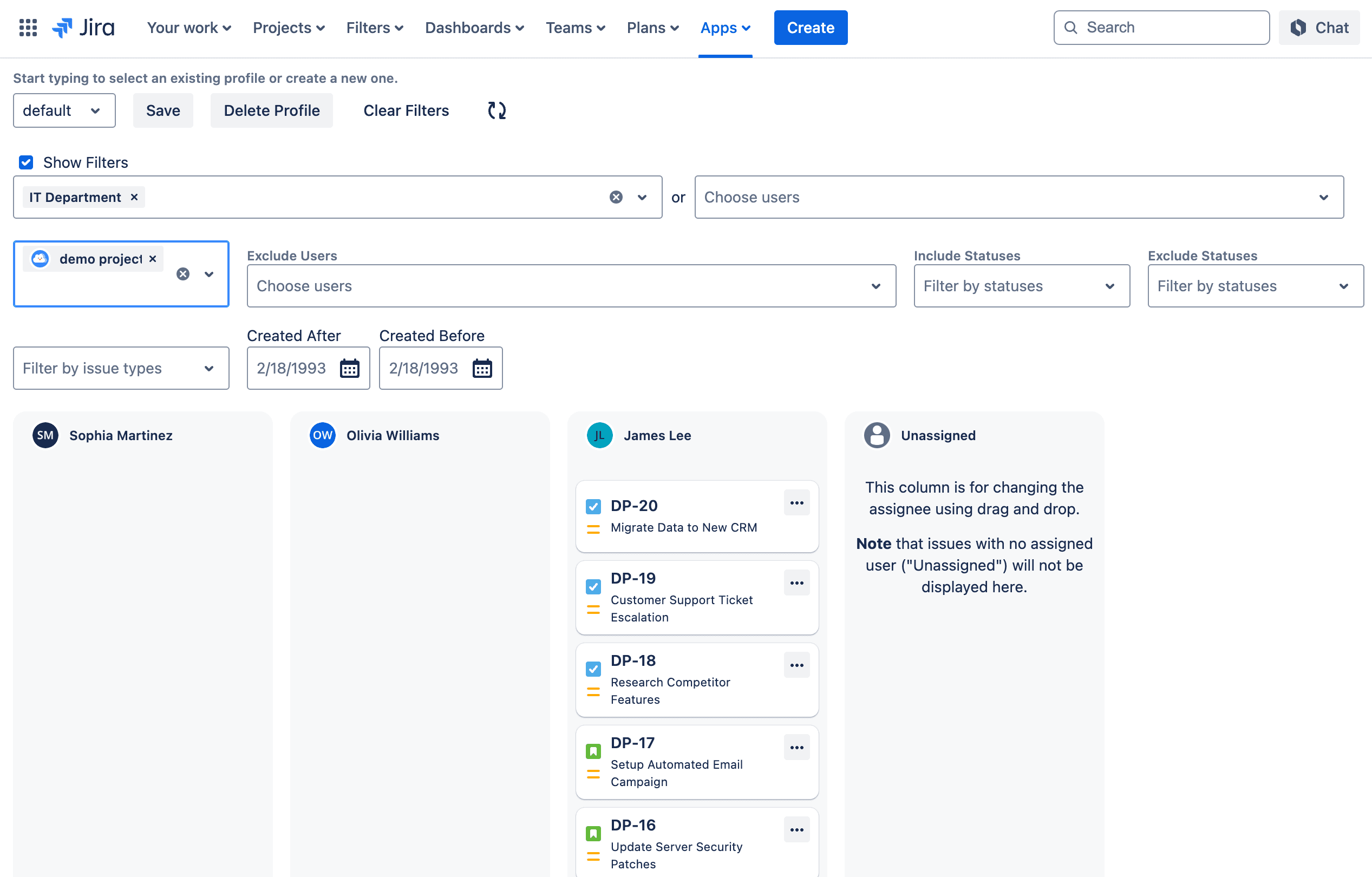

Choose people in Assignees, or groups in Groups — the board stays empty (“Choose people or groups”) until you do. A group brings in every active member, also in large groups.

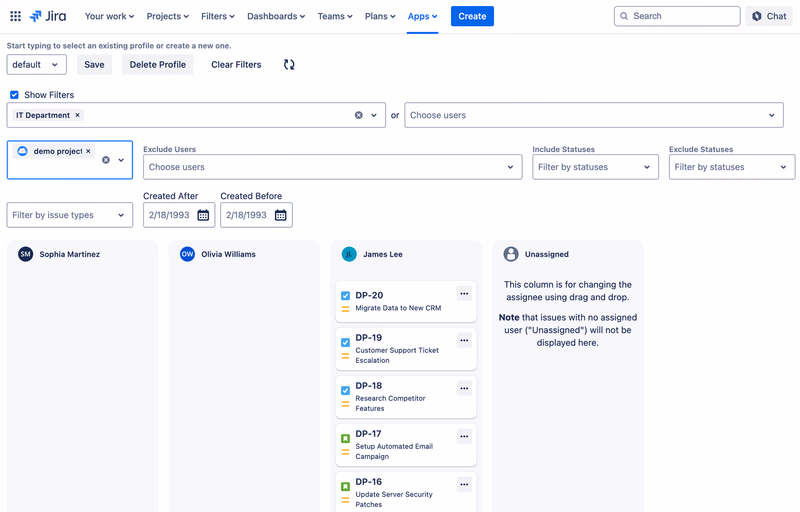

Rebalance by drag and drop
- Open the By assignee tab.
- Choose the people in Assignees.
- Each column is one person, with their number of issues.
- The bar shows hours this week against their capacity. Red means overloaded.
- Σ is the total of their open work.

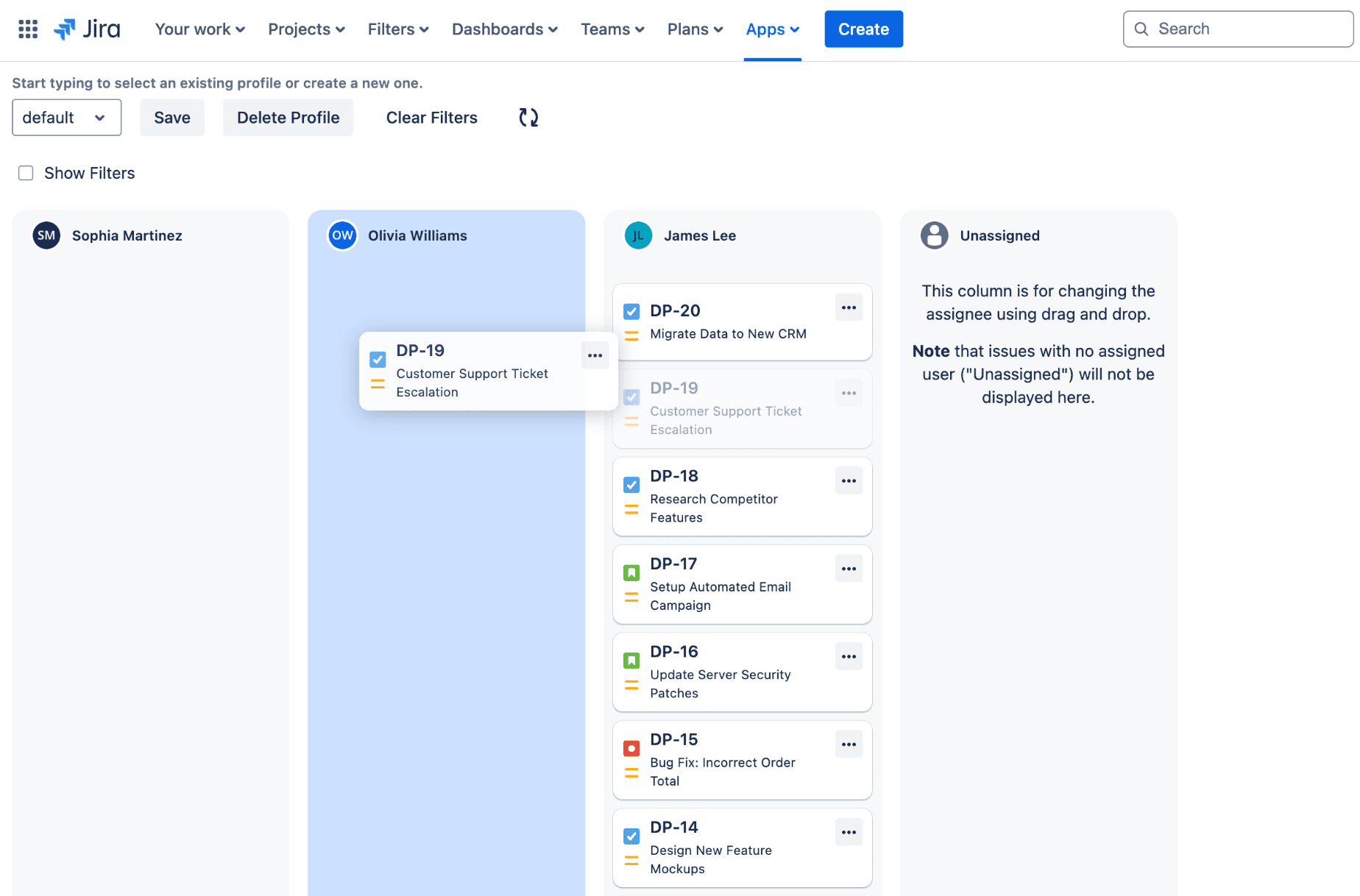

Drag a card from a red column to a person with room: the issue is reassigned.
- Reassign: drag a card to another person’s column. Drop it on Unassigned to remove the assignee. The ⋯ menu of a card has the same under Move to, for the keyboard.
- Several at once: Ctrl+click (⌘+click or Shift+click) cards, or Select them in their menus, then Move to… in the bar “N selected”.
- Undo: the message after a move has Undo, and Ctrl+Z (⌘Z) does the same — for every card of the last move.
- If Jira refuses (the person cannot be assigned in that project, or you may not edit the issue), only that card goes back, with Jira’s reason.
The Unassigned column appears when you choose it, or when there are unassigned issues. Exclude it with Exclude people → Unassigned.
See the hours per person

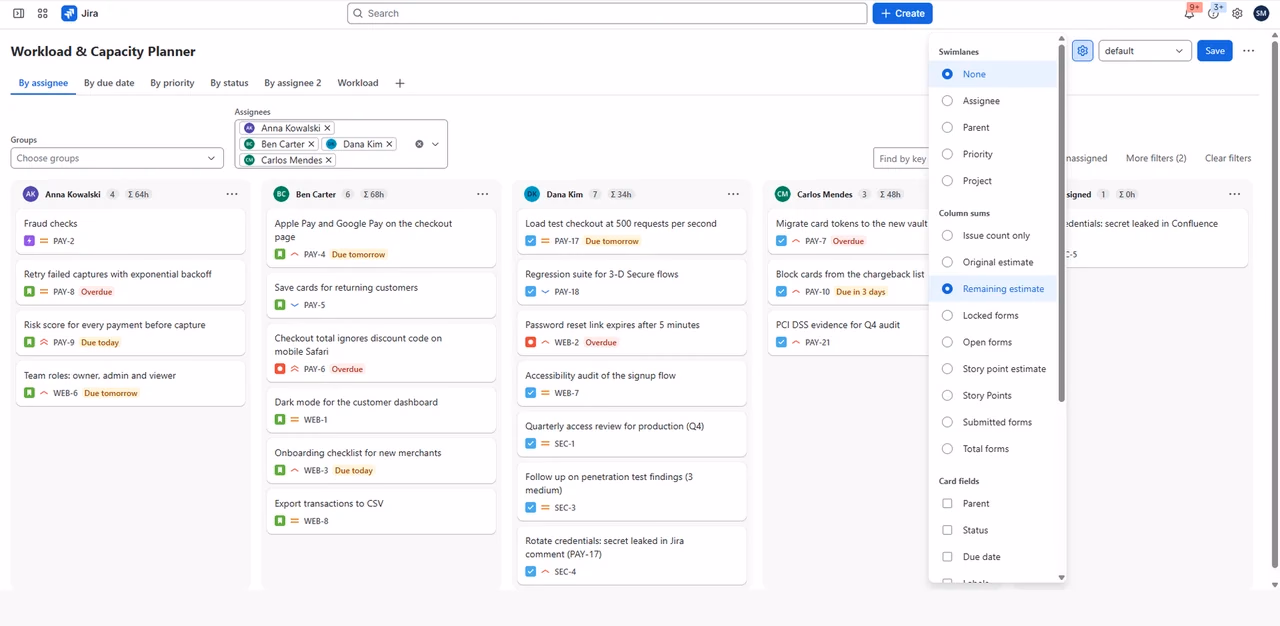

View settings (top right) → Column sums adds a total to each person’s column header — the original or remaining estimate in hours, Story Points or another number field:
Done issues are not counted in the remaining estimate.
Group by project or epic
Group: Project (or Parent, Priority, Assignee, Issue type) splits the board into lanes, each with its count; click a lane’s title to fold it. A card moves within its lane.
The rest of View settings: Card fields (Parent, Status, Due date, Labels, Components, Fix versions, Remaining estimate on every card) and Auto-refresh (off, or every 1, 5, 15 or 30 minutes). A column’s ⋯ menu also sets a WIP limit — handy as a “max issues per person” warning.
The capacity heatmap
Add the Workload view with + (Add a view) → Workload and choose people or groups.
- Open the Workload tab.
- Each row is a person and their weekly capacity.
- Each cell is a week: hours and issues due. Green is under capacity, yellow almost full, red over.
- Click a cell to see the issues behind it (next picture).
- The last column is the six-week total.
- Rows — the chosen people, then Unassigned.
- Columns — Overdue, this week, the five weeks after it, and No due date. An issue counts in the week of its due date.
- A cell — the hours of the person’s open issues due then (remaining estimate, or the original estimate when nothing remains recorded) and how many issues. Done issues are left out.
- Colours — a week is green up to 80 % of the person’s capacity, amber up to 100 % and red above it. Overdue is red whenever it has issues.
Set each person’s capacity

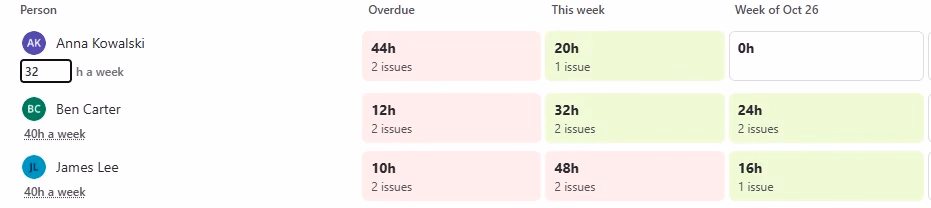

Click 40h a week under a name and type the hours (1–168; empty goes back to 40). Press Save changes to keep it with the view.

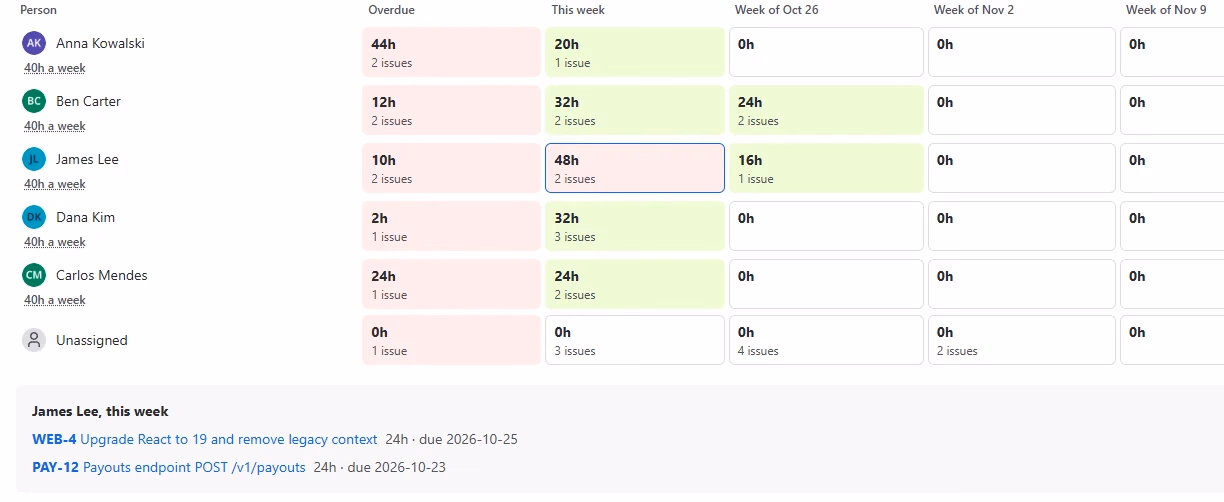

See the issues behind a cell
Click a cell to list its issues, with their hours and due dates; click one to open it in Jira.
- Click a cell.
- The colours mean under capacity, almost full and over capacity.
- The list below shows the issues of that person and week, with hours and due dates. Click a key to open the issue.
Then switch to the By assignee tab and drag the work from the red week’s owner to someone with room.

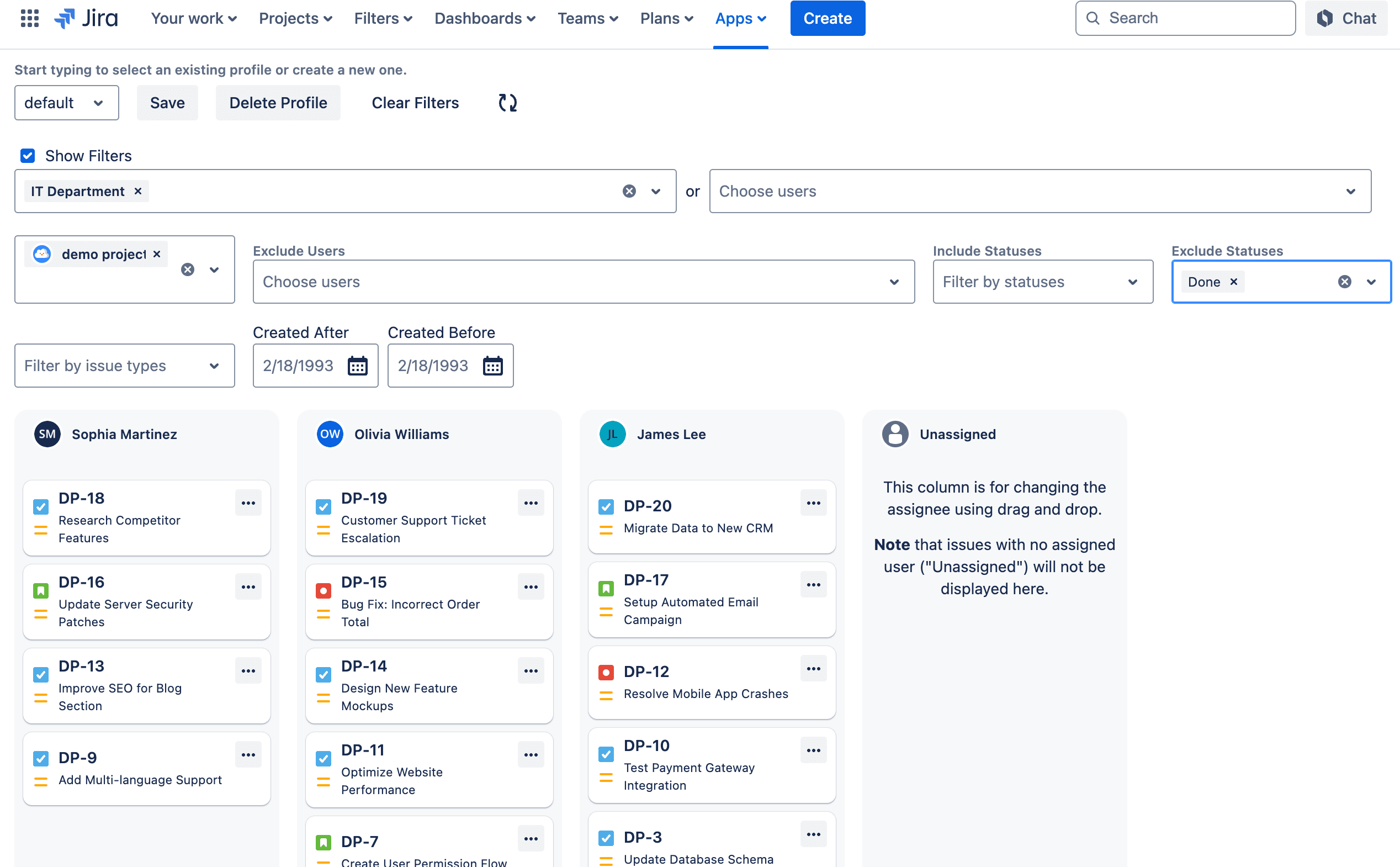

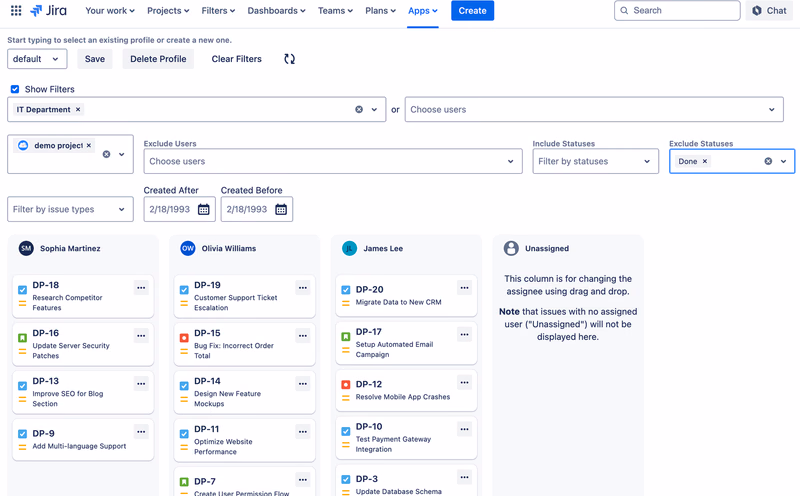

Across projects and sprints
| Filter | What it does |
|---|---|
| Assignees | the chosen people (their columns or rows); “Unassigned” adds the unassigned work |
| Groups | every active member of the chosen groups |
| Projects | only these projects (empty = every project you can see) |
| Exclude people | hides these people’s columns |
| Include / Exclude statuses | only issues in these statuses / hides issues in these statuses |
| Issue types, Priorities | only these issue types or priorities |
| Created after / Created before | issues created in this period |
Find by key or summary, Mine and Unassigned narrow the cards on screen at once and are not saved.
More view tabs: By due date, By priority, By status (these two ask for a project first on this page), Sprints (Jira Software — move issues between the backlog and sprints of a Scrum board) and By field… (Labels, Components, Fix versions or a select field).
Save, share and export
- Saved views — the select next to the app’s name (“default ▾”): Save changes keeps the board in the current view, Save as new view… adds one, Delete view… removes one.
- Added views keep their own filters and capacities, saved into the view with Save changes.
- Share with everyone (the ⋯ menu of a view) shares it as it is now; others add it from + → Shared views. The person who shared it and Jira admins can change it for everyone; others can Save as my view. The address follows the tab, so a link opens that view.

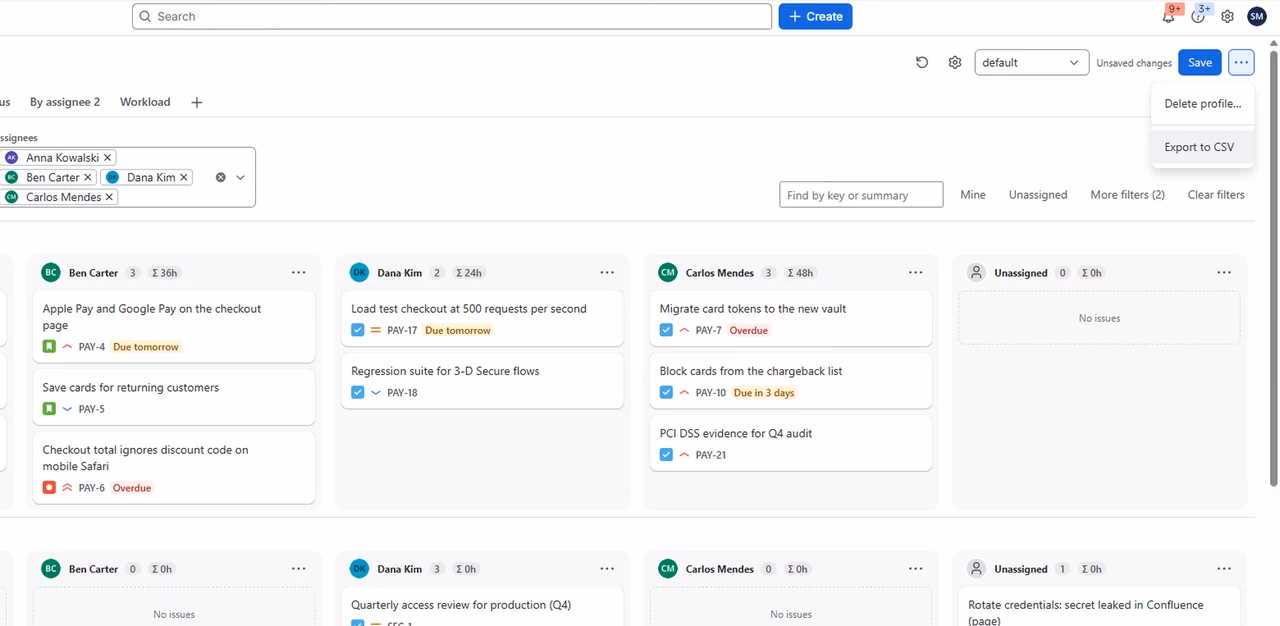

- Export to CSV (the same menu) saves the cards on screen — key, summary, column, status, priority, assignee and due date — as a spreadsheet, made in your browser:
A dashboard gadget (Edit → Add gadget → Workload & Capacity Planner) shows the assignee board’s columns with their counts and sums; choose the Groups in its Configure.
Keyboard
The cards are one Tab stop: ↑ / ↓ within a column, ← / → to the next column with issues, Home / End and Ctrl+Home / Ctrl+End to the first and last issue; Enter or Space opens the card’s menu. Heatmap cells are buttons: Tab to one and press Enter to list its issues.
Saved views, Mine and View settings
Since the November 2026 redesign every board has the same frame:
- The saved view next to the app’s name (”· default ▾”): switch views, Save as new view…, Rename, Delete view… and share a view with the project or everyone. While the board differs from what is saved, Save changes and Discard appear.
- Quick filters next to Filters: Find issues, Mine and Unassigned.
- View settings — a panel beside the board: Group by (swimlanes), Column sums, Card fields with a live preview, WIP limits of every column in one list, and Auto-refresh. Every change shows at once and is kept with Save changes.
Permissions and data
- Issues stay in Jira. Reassigning runs through Jira’s REST API as you; every change is in the issue history.
- Stored by the app: profiles, view tabs, capacities and shared views, in the app’s Forge storage inside your Atlassian site. Nothing is sent outside Atlassian.
- Permissions: read and write Jira work, read users and groups (people and groups filters), app storage, Jira configuration (Jira requires it to list group members), and Jira Software’s board, sprint and rank permissions for the Sprints view and ranking.
- On uninstall profiles, views and capacities are removed; assignments stay in Jira.
See the privacy policy.
Troubleshooting
- The board is empty: “Choose people or groups” — pick at least one person or group.
- A heatmap cell shows 0h with issues in it — those issues have no original or remaining estimate.
- Someone is missing — they are excluded, or not an active member of the chosen group.
- “Issues could not be loaded: …” — press Retry. “Views could not be loaded” — Try again; nothing is lost.
Still stuck? Contact support.
